FoBE Breakout MFP-HUB

FoBE Breakout MFP-HUB

F2212

$1.00 USD
$1.30 USD $1.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Board Color: Green
View full details


Introduction

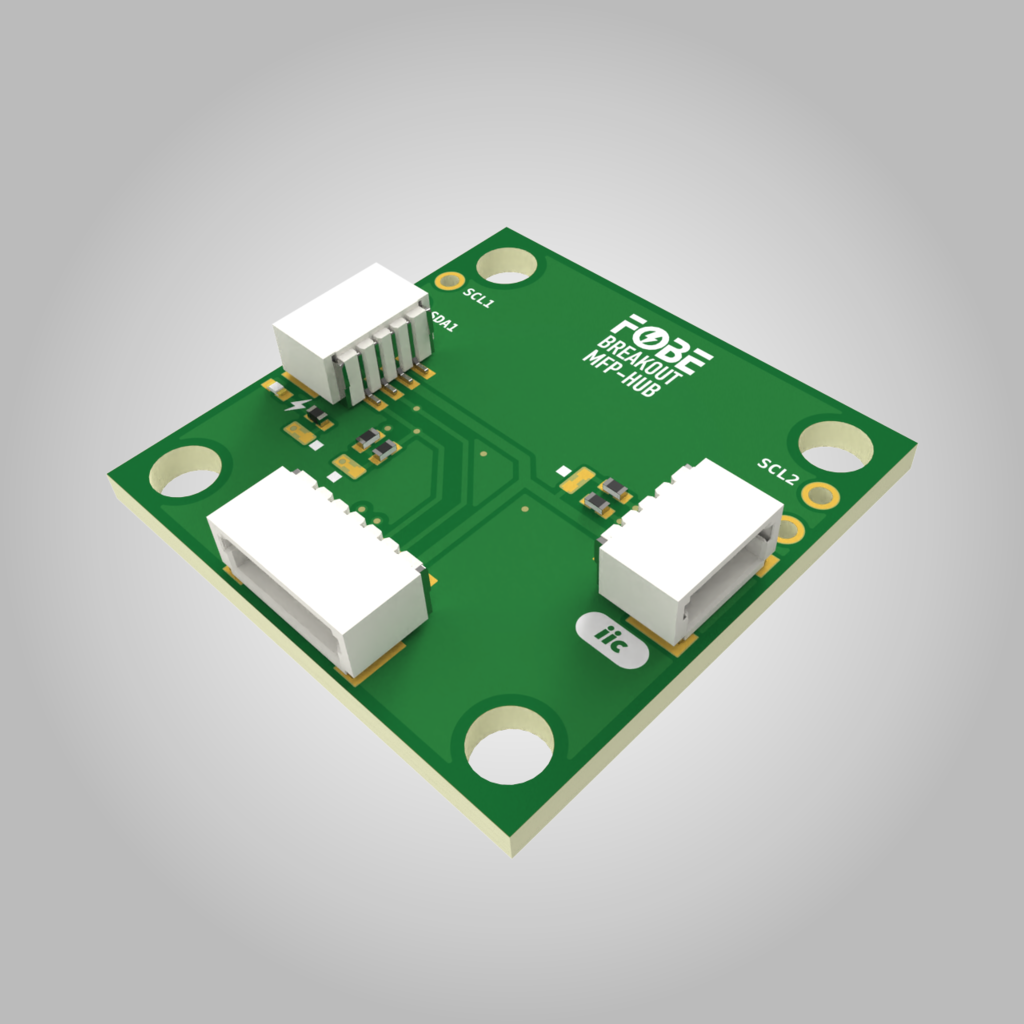

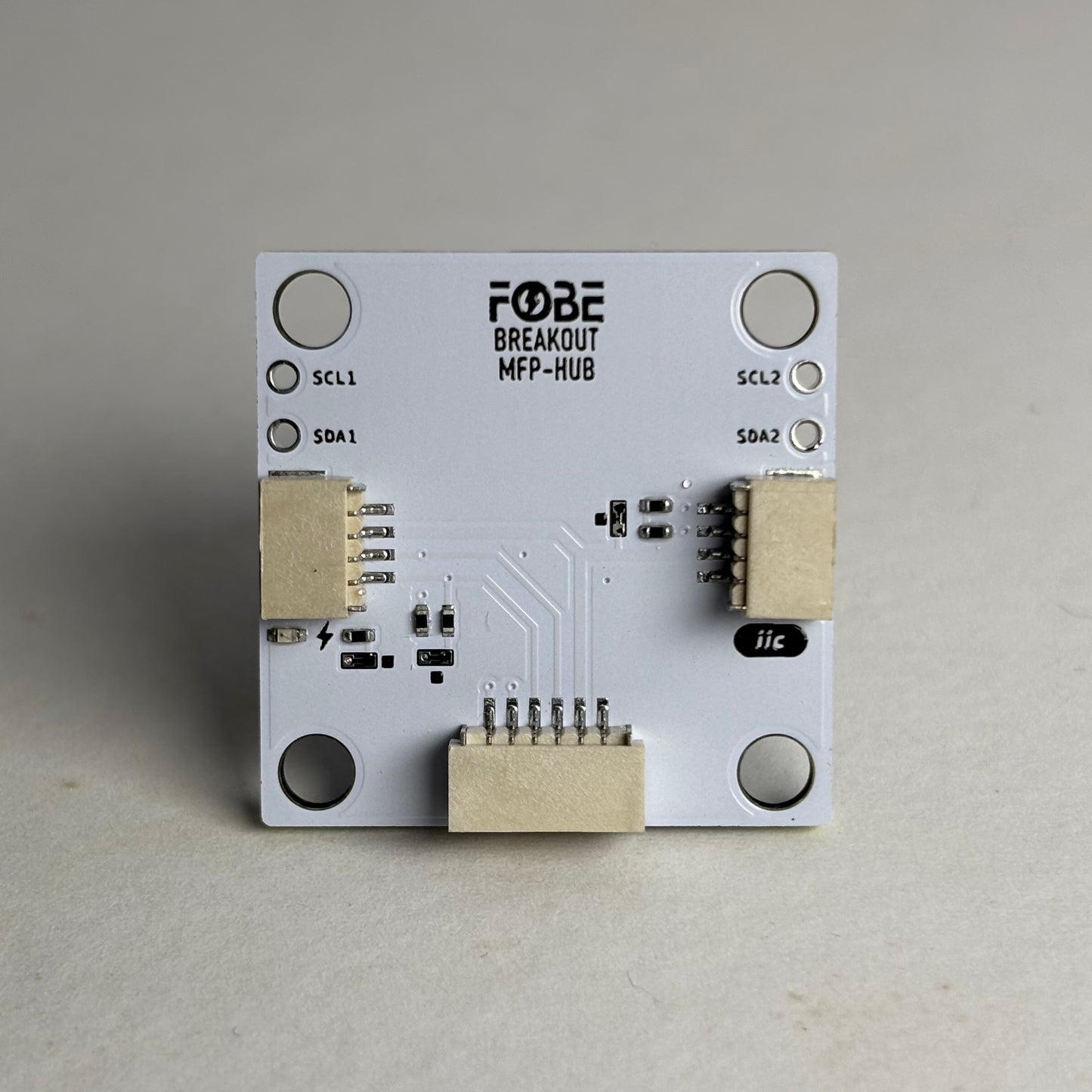

The FoBE Breakout MFP-HUB is an interface converter that splits a 6-pin MFP (Multi-Function Port) into two 4-pin I²C interfaces. This allows for connecting multiple I²C devices to a single MFP port, simplifying wiring and expanding connectivity options.


Key Features

  • Interface Conversion: Converts one 6-pin MFP interface to two 4-pin I²C interfaces.
  • Flexible Connectivity: Provides one 6-pin JST SH1.0 connector for MFP input and two 4-pin JST SH1.0 connectors for I²C output.
  • On-board Pull-ups: Each I²C port is equipped with pull-up resistors, which can be individually disconnected via jumpers.
  • Power Indicator: An on-board power LED indicates the board's status, which can be disabled for low-power applications.

Packing List

Part Quantity
FoBE Breakout MFP-HUB board 1
MFP Cable (JST-SH1.0 6-Pin) 1

Getting Started with FoBE Breakout MFP-HUB

Refer to the documentation for further details about this product.
